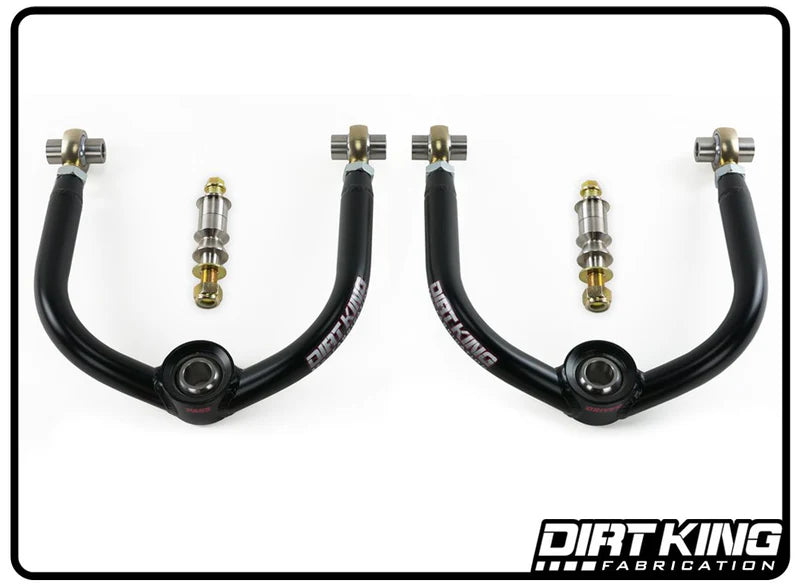

Heim Upper Control Arms Fits: 2004-2023 | 2WD / 4WD

There are multiple issues when lifting your vehicle with stock upper control arms. Both the geometry and strength are compromised due to over articulating the stock arms. We solved these problems by designing our upper control arms with increased castor and repositioned pivot angles reducing stress on the joints. The increased castor allows for proper alignment and improved handling. We also replaced the weak factory ball joints with 1” stainless steel uniballs for maximum strength and increased articulation. For the inner pivots we used heavy duty ¾” FK heims for additional camber and caster adjustability. To mount the arms to the spindle we include high grade 17-4 stainless steel misalignment spacers and grade 8 hardware. All of the components on our upper control arms are rebuild-able or replaceable to make this product last a lifetime. The arms come preassembled and include detailed instructions for easy installation.

• Wheel Travel: Additional 2” of travel compared to stock
• Amount of Lift: Allows for 0-3” of lift
• Track Width: Stock
• Maximum Backspacing: 5.25”

• Minimum Rim Size: 17”
• Coil over Shock Size:Factory or OEM replacement coilovers

Wheel Travel / Lift
The upper control arms must be paired with OEM replacement coil overs to lift the vehicle. They offer an additional 2” of down travel compared to the stock upper control arms. These arms are compatible with King, Fox, Bilstein, and Icon coil overs. Do not install these upper control arms with coil spacers that over articulate the suspension.

Tire Info
The upper control arms allow for 33” tires but for proper tire clearance modifications to the wheel well and bumper may need to be made.

• CAD designed

• Complete 4130 chromoly construction
• Preassembled for fast installation
• Grease fittings for easy servicing
• Zinc plated components for corrosion resistance
• Professionally MIG welded
• Proudly made in the USA

2004-2015 Nissan Titan 2WD / 4WD
2016-2023 Nissan Titan (Non-XD) 2WD / 4WD
*This suspension will NOT work with the 2016 or newer Titan XD models.
